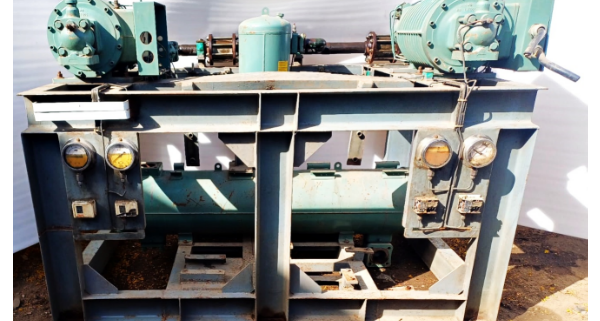

2008 || BITZER HSK 7451-70-40P Semi-hermetic Screw Compressors HS Series ||

Compressor Make: Bitzer
Type: HSK 7451-70-40P
3Ph: 400 V[50 hz], 460 V[60 hz] Betr.Strom A[max.]: 124 A
Anlaufstrom: 290 A, 485 A
m3/h: 192 [50 hz], 230 [60 hz] Drehzahl Min-1: 2900 min-1 [50 hz], 3500 min-1 [60 hz] IP: 54
ND/HD max: 19
Pressure: 28 Bar

Refrigerant        Freon
Refrigerant type        R 404 A or other types
kW at 0ºC/+40ºC        173
kW at -5ºC/+40ºC        142
kW at -10ºC/+40ºC        115
kW at -20ºC/+40ºC        74

Oil Separator Reservoir Make: Bitzer
Type: OA1854
Sr no.: 1174600398
Year: 2008
Volume: V: 40 L
Temp TS: -10 °C / 120 °C
Pressure PS: 28 bar
PED Fluid Group: 2
