|| CATERPILLAR 3516, 3516D GENERATOR SETS FOR SALE ||

We have CATERPILLAR 3516, 3516D GENERATOR SETS available for sale.

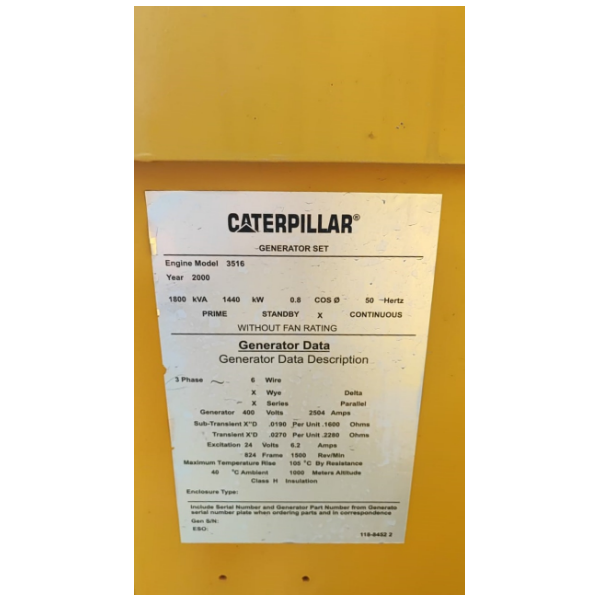

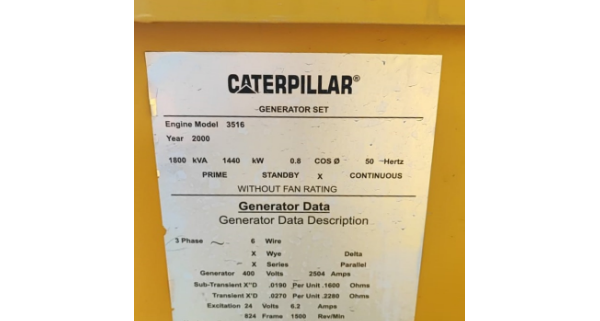

Make: Caterpillar

Model: 3516, 3516D

Year: 2000

Power rating: 1800 kVA 1440 kW

0.8 Cos phi

Freq: 50 Hz

Without Fan Rating

Phase: 3

Wire: 6

Wye Delta Parallel Series

Generator: 400 V 2504 Amps

Sub-Transient X”D: .0190 Per Unit .1600 Ohms

Transient X’D: .0270 Per Unit .2280 Ohms

Excitation: 24 V 6.2 Amps

Frame: 824

Speed: 1500 rev/min

Max Temp. rise: 105 °C By resistance

Ambient: 40 °C 1000 Meters Altitude

Insulation: Class H

Part Num: 7E-0679

Sr No: 015307-09410

Speed: 80000 RPM

Temp: 780 °C

Sr: 6AA02294, 25Z01498

arrangement no: 6I-3093, 2w8404
