|| TEC TR-T-679 FUEL TANKS [Bitutainer / Bitumen / Crude Oil / Oil Tank / Thermal Fluid] ||

We have 8 units of Containerized TEC Fuel Tanks manufactured by Singamas Container Industry Co Ltd, with Westfalia OSE 10-0136-067 Oil Separator. Ex-Work – UAE

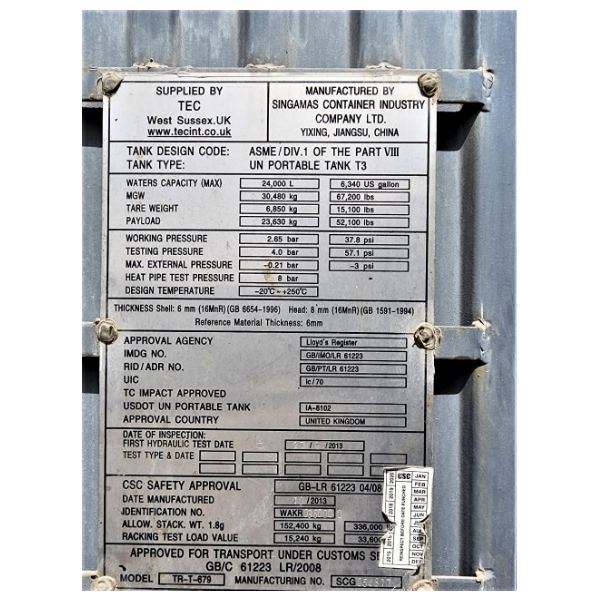

TANK MAKE: TEC

MODEL: TR-T-679

Manufacturing Number: SCG054517

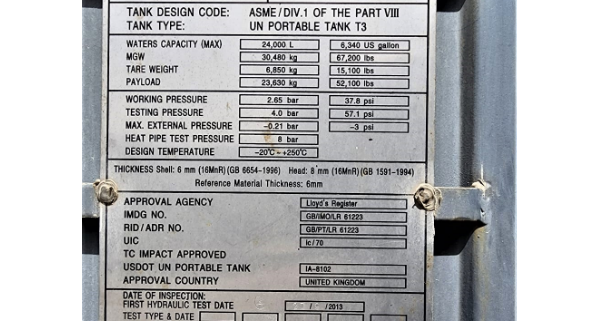

Tank Design Code: ASME/DIV.1 OF THE PART VIII

Tank Type: UN PORTABLE TANK T3

Waters Capacity (MAX): 24,000 L / 6,340 US Gallon

MGW: 30,480 KG / 67,200 lbs

TARE Weight: 6,850 KG / 15,100 lbs

Payload: 23,630 KG / 52,100 lbs

Nominal Capacity 24,000 Litres

Ratings:

Max GW 30,480 Kgs

Payload 23,630 Kgs

Tare Wt. <6,850 Kgs

Measures:

Length 6,058 mm (20’)

Width 2,438 mm (8’)

Height 2,591 mm (8’6”)

Working Pressure: 2.65 BAR / 37.8 psi

Testing Pressure: 4.0 BAR / 57.1 psi

Max. External Pressure: -0.21 BAR / -3 psi

Heat Pipe Test Pressure: 8 BAR

Design Temperature: -20°C ~ +250°C

Thickness Shell: 6 mm (16MnR) (GB 6654-1996)

Head: 8 mm (16MnR) (GB 6654-1996)

Reference Material Thickness: 6 mm

Approval Agency: Lloyds Register

ADR and RID Approved.

IMDG No.: GB/IMO/LR 61223

RID/ADR No.: GB/PT/LR 61223

UIC: ic/70

TC impact approved USDOT UN Portable Tank: IA-8102

Approval Country: United Kingdom

SEPARATOR MAKE: GEA WESTFALIA

Model: OSE 10-0136-067

YOM: 2014

Serial No.: 9069-995

Mac Admissible rated bowl speed: 12000 min⁻¹

Heavy Liquid: 1.0 kg/dm³

Solids: 1.4 kg/dm³

CSC SAFETY APPROVAL

CSC No.: F/BV/11961/12

Date Manufactured: 2013 July

Identification Number: T8034285-009

Type: HFO SKID

Model No.: D073040

Part No.: 05-0021492

Maximum Gross Weight: 15,000 KG / 33,070 LB

Allowable Stacking Weight for 1.8G: 192,000 KG / 423,280 LB

Racking Load Test Value: 15,240 KG / 33,600 LB

Examination Due Date: 2018 July
